We offer our driving- und positioningystem with two variants of control, one directly mounted on the motor as a complete Compact Drive and another separate motor control for conecting of several brushless (BLDC) motors or also for motors with brushes. The control can also be programmed. The software can be downloaded free.

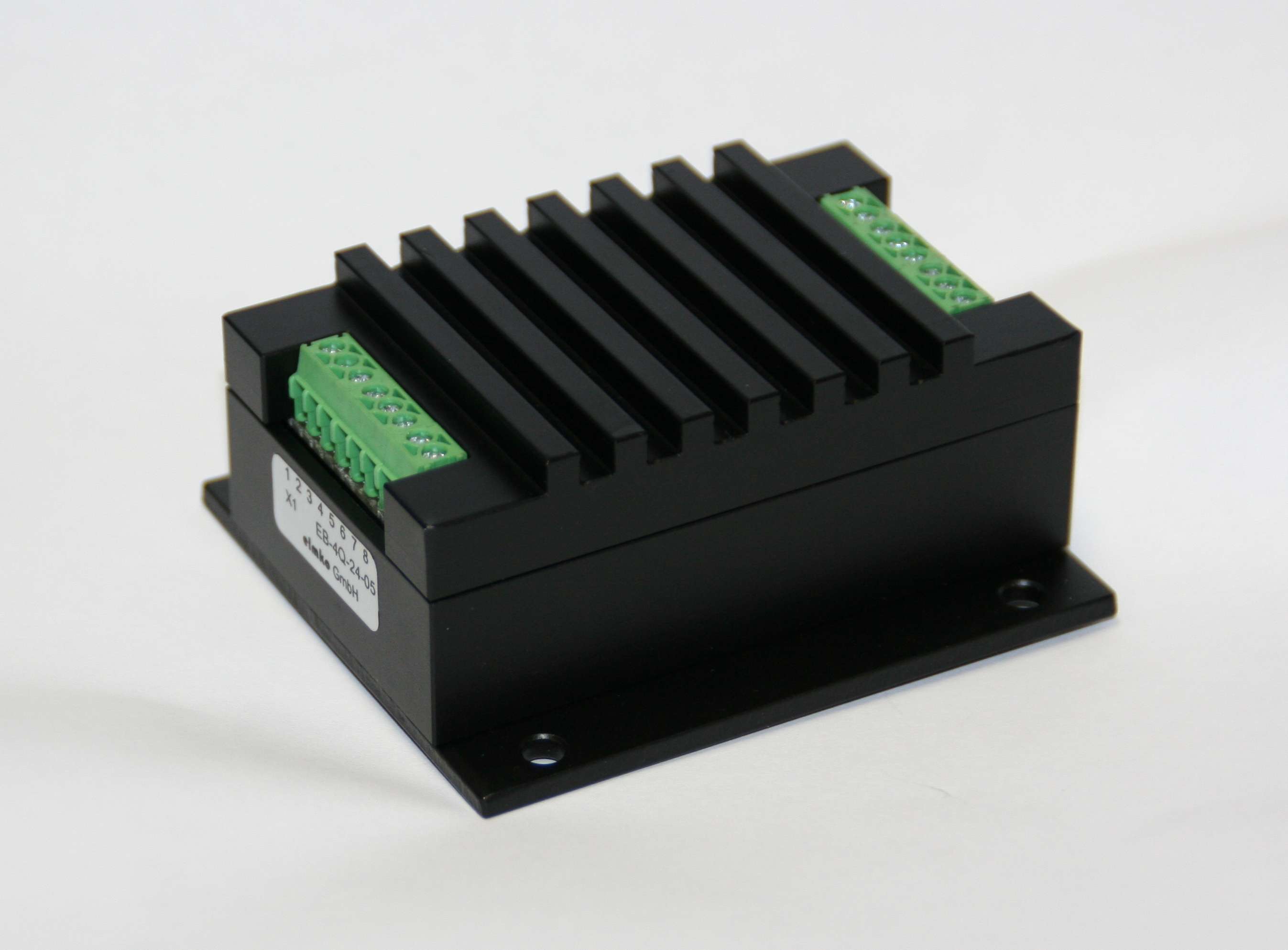

Compact position and speed control for brushless DC motors. Suporting serial interface RS232 with standard instruction set (various interfaces are under construction). The control is monitoring power supply, current load and temperature. All limits are configurable. Connection can be made via cable terminal and screw clamps. Two digital inputs and one configurable input/output are provided. The controls can be linked together, up to 255 various addresses are possible. As an option can the control be free programmed.

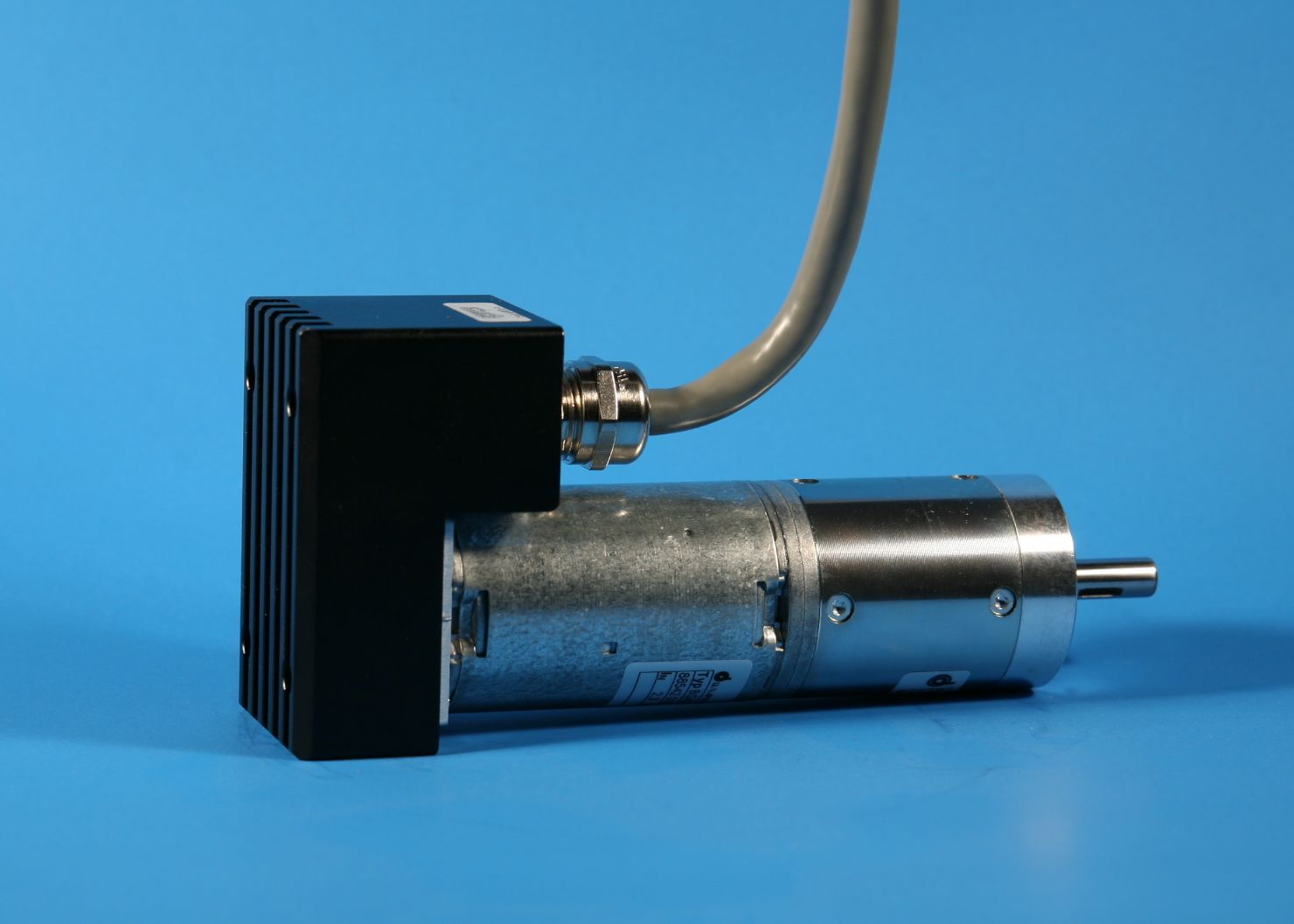

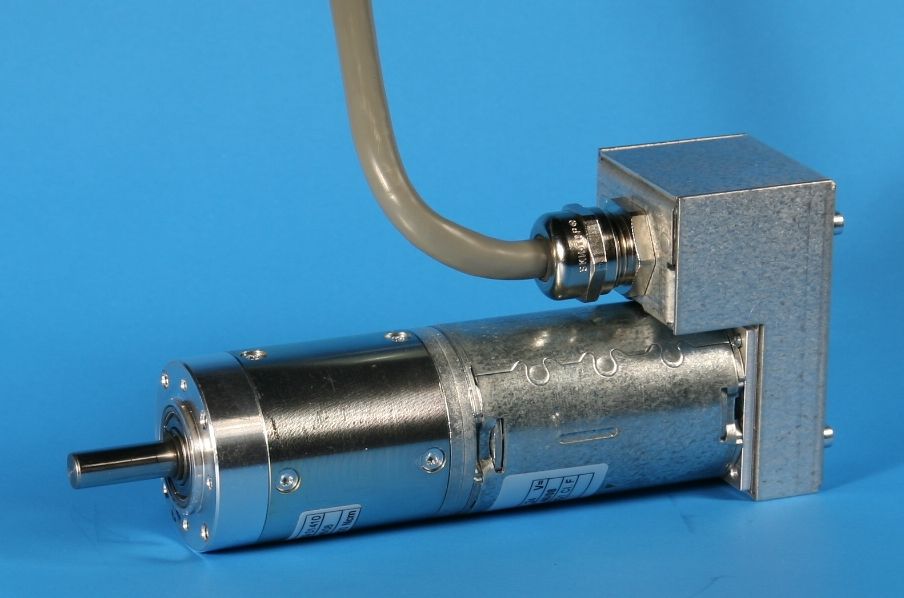

The elmkobull-KD is a single unit consisting of an electronic control, a brushless DC motor and a planetary gear box.

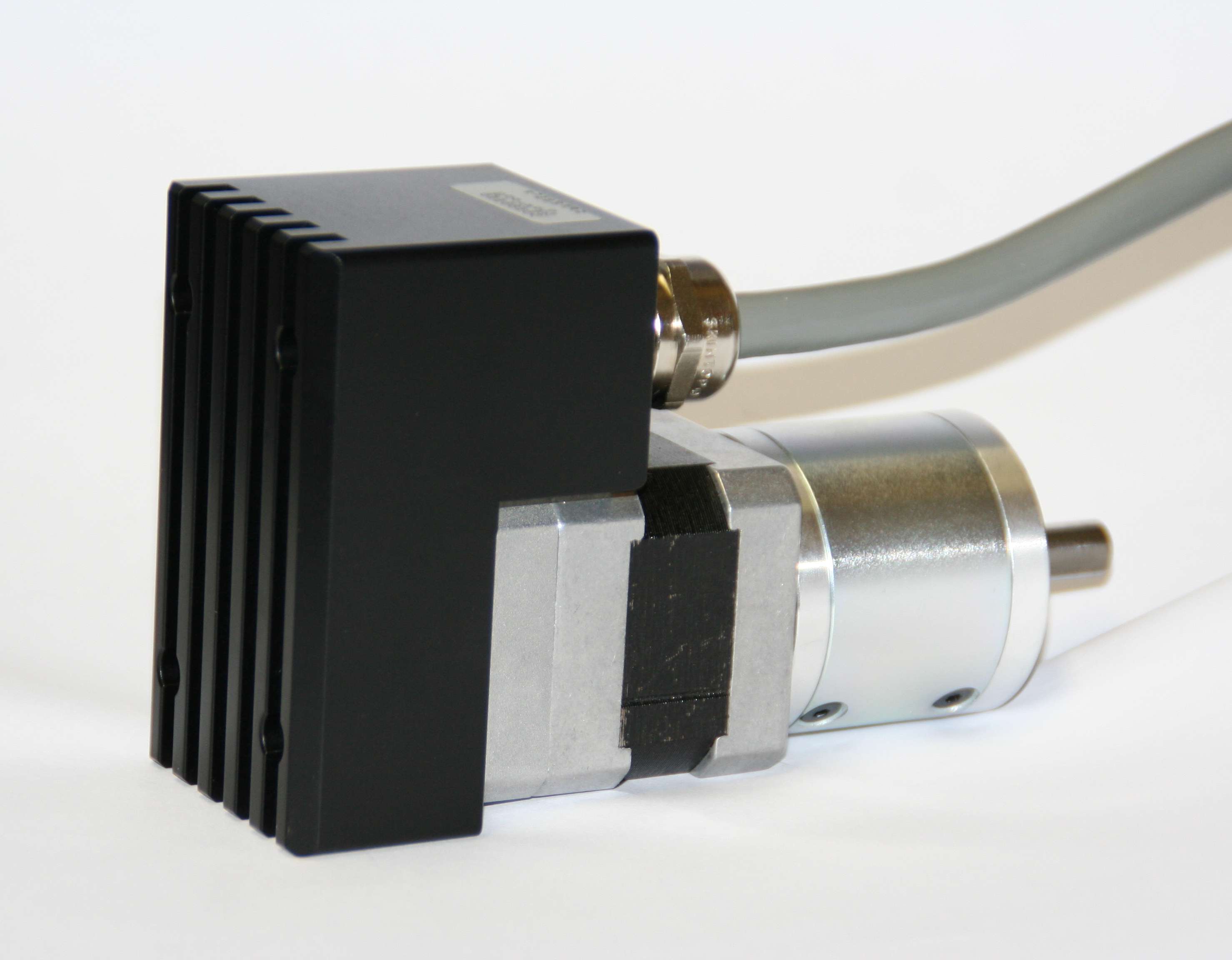

The elmkobull-KD is a single unit consisting of an electronic control, a brushless DC motor and a planetary gear box. The compact drives elmkobull-KD42 can be configured in accordance to your individual requirements. You can select between two motor types and three gear boxes with with various gear ratios.

further variant
